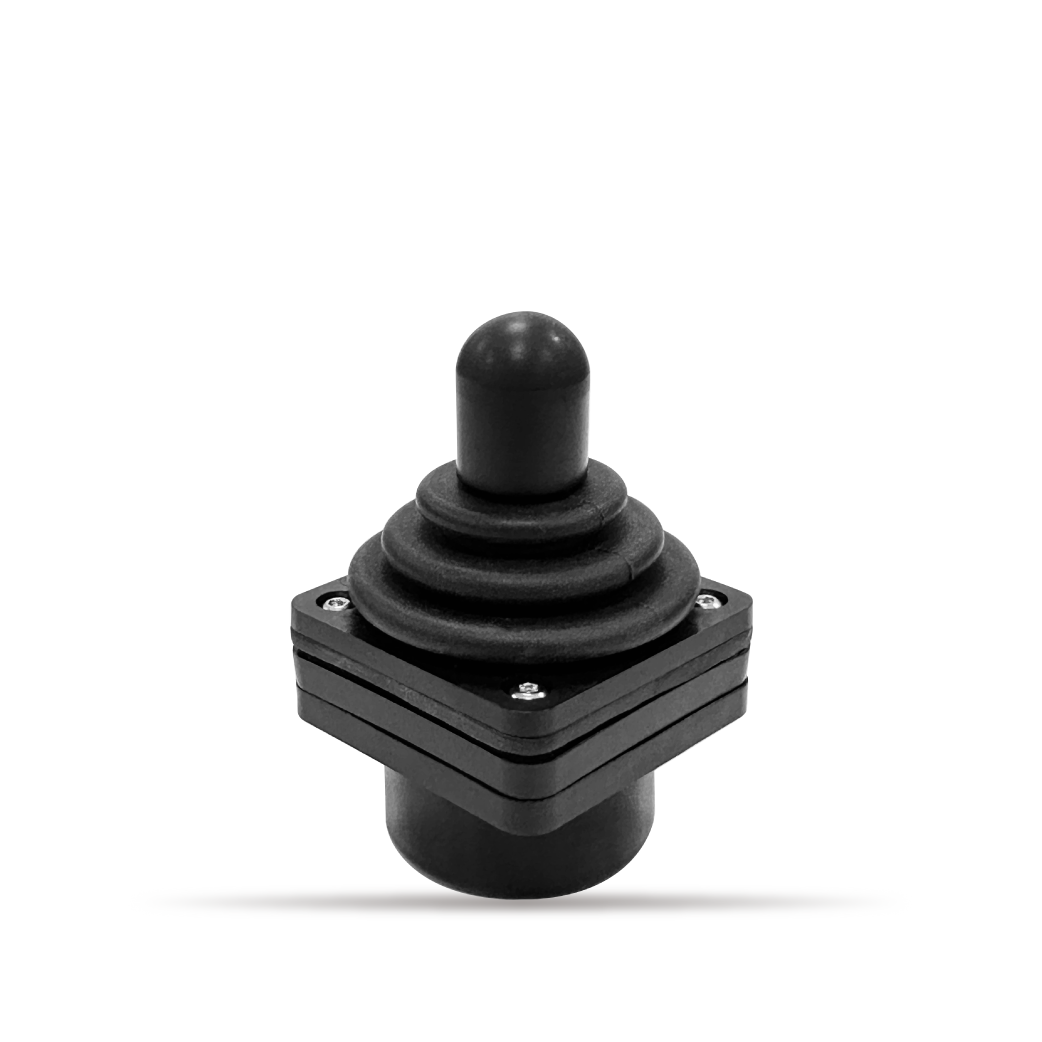

Operating angle

Approx. ±20º (XY axes); ±30º (Z axis)

Operating method

With spring return device

Operating force（note）

Approx. 3N～6N

Maximum allowable force

300N

Mechanical life expectancy

Approx. 5,000,000

Operating temperature

-30℃~+70℃

Storage temperature

-40℃~+85℃

Mass

Approx. 160g

Protection degree

IP65

Input voltage

5V±10%；9~36V；15~30V

Output Signal

0~100% / 10～90%Vcc；0~5V；0~10V

Current consumption (no-load)

<22mA（XY axes） / <33mA（XYZ axes）；<25mA；<25mA

Load resistance

100KΩ；>100KΩ；>100KΩ

Output deviation at both ends

<2%·Vcc；<50mV；<50mV

Power overvoltage protection

<10V.D.C.；<36.5V.D.C.；<35V.D.C.

Reverse power protection

/；>-1KV.D.C.；>-1KV.D.C.

Independent linearity tolerance

±3%

Resolution

4096

Dielectric strength

1 min (500V.A.C.)

Insulation resistance

>1000MΩ (500V.D.C.)

Output voltage at center position

2.5V±0.1V

Linearity Tolerance of Output Voltage

<±0.2V

EMS

10V/m (80MHz~1GHz 1KHz 80%)

Color

Red；Black；White；Yellow；Gray；Green；Green

Title

5V；0V；Xout；Yout；Zout；Switch 1；Switch 2

Input voltage

5V from USB

Current consumption (no-load)

40mA

Axes

Up to 3 (X Y Z) on the joystick

Button

0, 1 or 2 on the handle

EMC

10 V/m (80 Mhz-1 GHz / 1 kHz 80 %)

Special analog signals

15~30V applied, 4~20mA output；10V applied, 0~10V output；3.3V applied, 0~5V output；Dual analog signal and PWM

Other output signals

SSI, Modbus, wireless conmunication (LoRa), other digital signal, bus signal, etc.

Special knob

Details please check "Other optional knobs"

Other special specifications

With customer-specific connectors；With protection module
